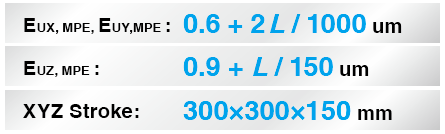

Achieves measurement at the highest precision of the NEXIV series, as well as advanced usability and performance. VMZ-H3030 incorporates the features of the up-to-date technologies of the Nikon VMZ-R series to achieve high accuracy and throughput with excellent ease of use. Suitable for applications requiring strict quality control through highly precise measurement.

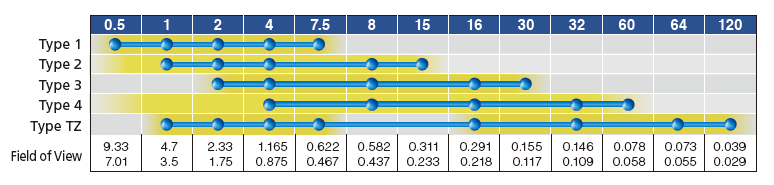

| Zooming head | Optical magnification | Applications |
|---|---|---|
| Type 1 | 0.5X – 7.5X | Molds, mechanical parts (household, automobile), PCB, electronic parts, ceramic parts |
| Type 2 | 1X – 15X | |
| Type 3 | 2X – 30X | Electronic parts |
| Type 4 | 4X – 60X | High density package substrate (line width, height) |
| Type TZ | 1X – 120X | Wafer pattern (WLP, bump height, rewiring mask, MEMS mask) |
